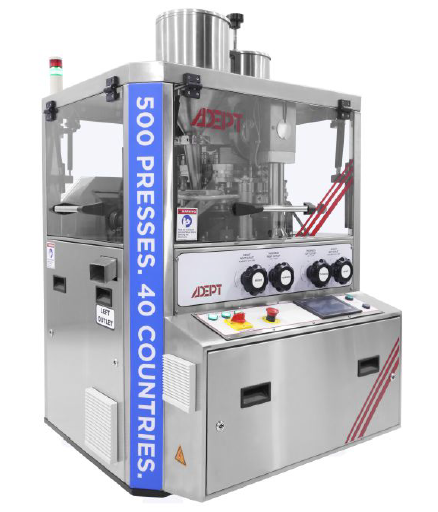

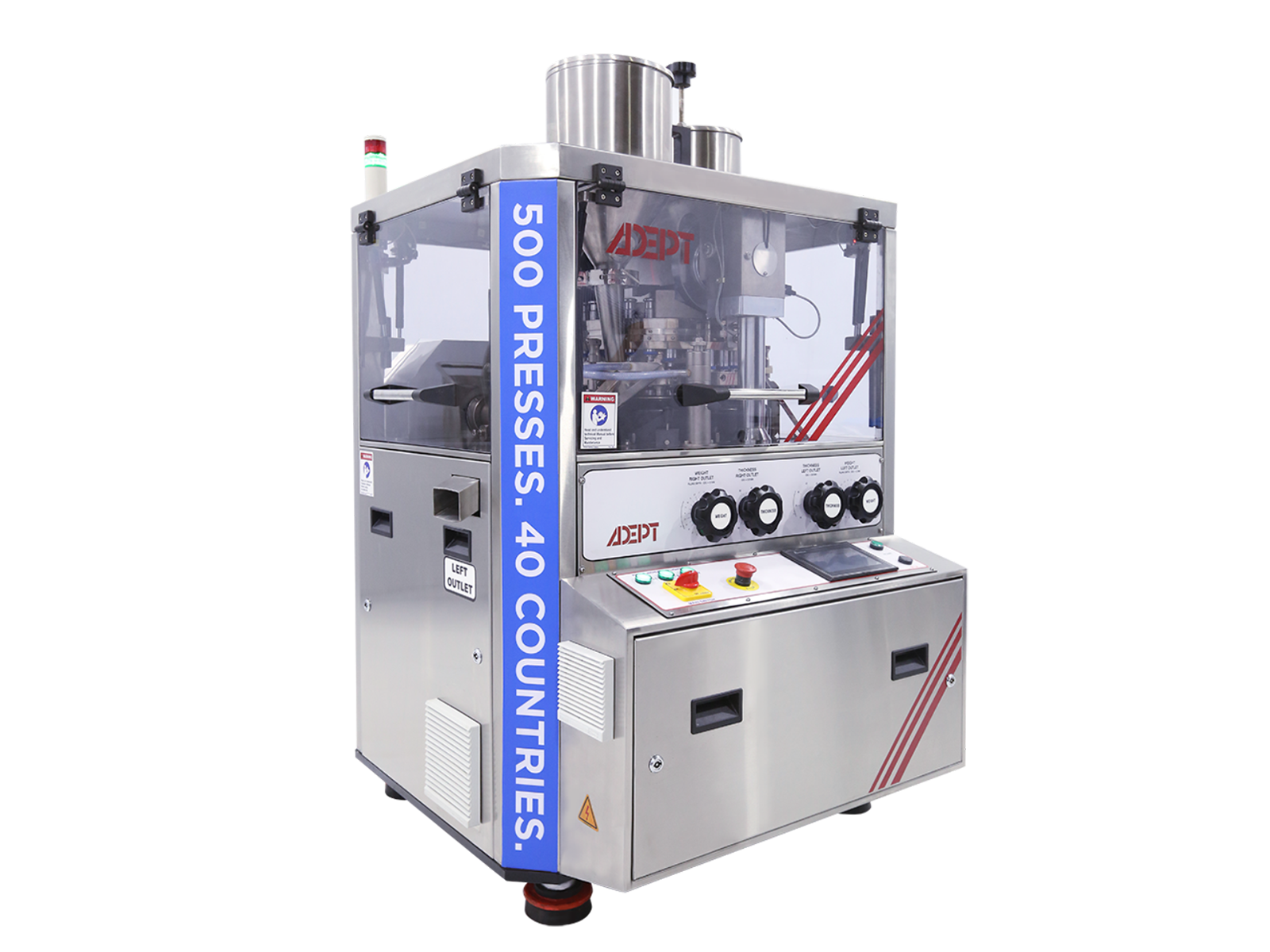

Adept ADR – 27-45 Station Tablet Press

SALIENT FEATURES

• 100kN Pre & 100kN Main Compression if used as Single Side
• Food Grade Multi-chamber Gravity Feeder -Minimum Weight Variation at High Speed

OPTIONAL FEATURES

• Force Measurement System
• Auto Rejection
• 21cfr part 11 Compliance
• AWC with Servo Motorized Control
• Bilayer Attachment with Automatic 1^st layer Sampling

STANDARD FEATURES

• VFD Drive for Main Motor
• Turret is Electroless Nickle Plated
• Ball Spring Plugs for L.P. Locking
• Front Control System for Setting Tablet Parameters
• Auto Lubrication System
• Bi-Layer Readiness

TECHNICAL DETAILS

Model	Stations	Round Tablet (Max Dia.)	Caplet (Max Length)	Max Pressure	Punch	Die	Tablet Output (Per Hour)
							38 rpm
ADR D-D-27	27	25	25	10	D	D	123,120
ADR D-B-33	33	22	22	10	D	B	150,480
ADR B-B-35	35	18.5	19	6.5	B	B	159,600
ADR B-BB-45	45	13	16	6.5	B	BB	205,200
ADR 15D+15B	15+15	25	25	10	D+B	D+B	68,400
