Higher output and minimum maintenance, our mega press design is guided by our philosophy of providing simple and efficient tableting solutions.

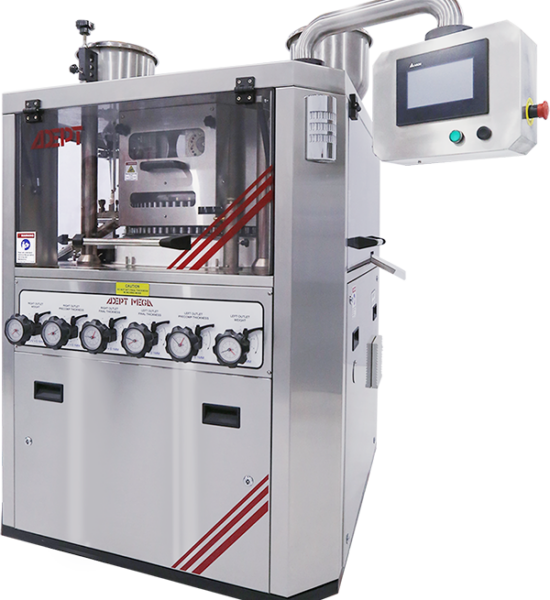

Mega Press at a glance
- The mega press has center drive, with no gear on the turret.
- The machine is designed for 10 tons pre-compression pressure.
- All eight compression rollers are identical and interchangeable.
- The rollers do not require continuous lubrication.
- Front control for all external control mechanisms.
- Multi chamber food grade gravity feeder.
- Upper punches completely covered to avoid powder settlement.
- Common hopper for rotary and gravity feeder.
- Bottom driven rotary feeder.
- Control knobs fitted with Seiko dials for fine control.
- Separate control panel, not attached to the press.
- PLC based control.
- Optional – Bi layer tablets.
SALIENT FEATURES
- Centrally Driven Without Gear on Turret
- 100kN Pre compression & 100kN Main Compression
- Upper & Lower Rollers on Bearing Identical & Interchangeable
- Dwell Time Display in HMI
STANDARD FEATURES
- PLC + HMI Control
- Electroless Nickle Plated Turret
- Force Feeder Jamming Sensor
- Auto Lubrication System
OPTIONAL FEATURES
- Force Measurement System
- Initial 2 round Tablet Rejection & Sampling
- 21cfr part 11 Compliance
- Bilayer Attachment with Automatic 1st layer Sampling
- Turret with SS 316 Die Plate for Corrosive Products
- “CE” Certification
TECHNICAL DETAILS
| Model | Stations | Round Tablet (Max Dia.) |
Caplet (Max Length) |
Max Pressure | Punch | Die | Tablet Output (Per Hour) |
| 40 rpm | |||||||
| AMR D-D-45 | 45 | 25 | 25 | 10 | D | D | 216,000 |
| AMR D-B-55 | 55 | 22 | 22 | 10 | D | B | 216,000 |
| AMR B-B-61 | 61 | 18.5 | 19 | 6.5 | B | B | 292,000 |
| AMR B-BB-75 | 75 | 13 | 16 | 6.5 | B | BB | 360,000 |
| AMR A-A-101 | 101 | 10 | N.A. | 6.5 | A | A | 484,800 |
