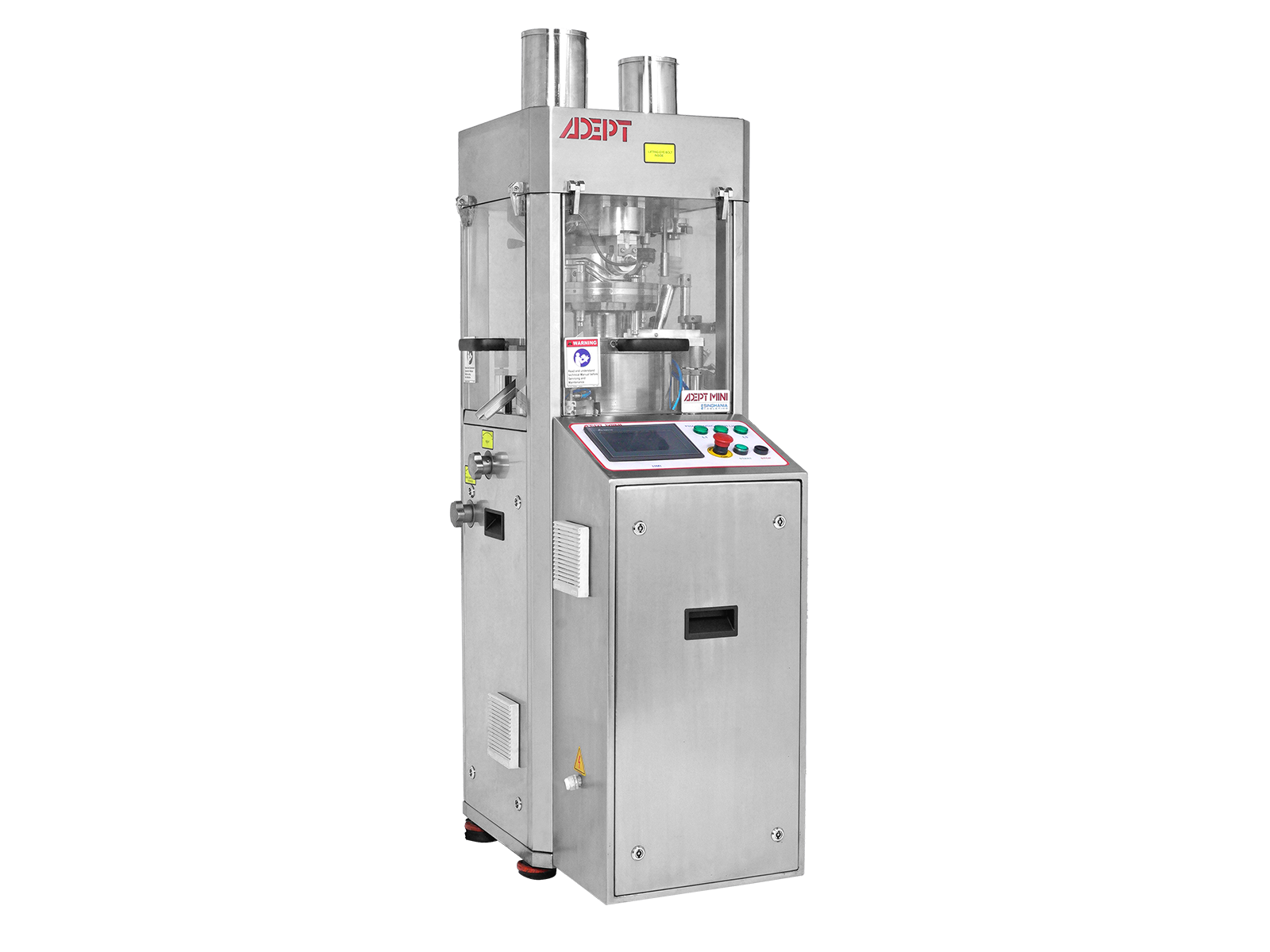

Adept ATB – BL Bi-Layer R&D Press

SALIENT FEATURES

• Centrally Driven Without Gear on Turret
• 20kN Pre compression & 65kN Main Compression
• Upper & Lower Rollers on Bearing

STANDARD FEATURES

• PLC + HMI Control
• Electroless Nickle Plated Turret
• Pneumatic Auto 1^st layer Sampling

OPTIONAL FEATURES

• Force Measurement System
• Tablet Rejection & Sampling

TECHNICAL DETAILS

Model	Stations	Round Tablet (Max Dia.)	Caplet (Max Length)	Max Pressure	Punch	Die	Tablet Output (Per Hour)
							30 rpm
ATR BL D-D-9	9	25	25	6.5	D	D	16,200
ATR BL B-B-11	11	19	19	6.5	B	B	19,800
ATR BL 5D+5B	5D + 5B	25	25	6.5	D + B	D + B	9,000
