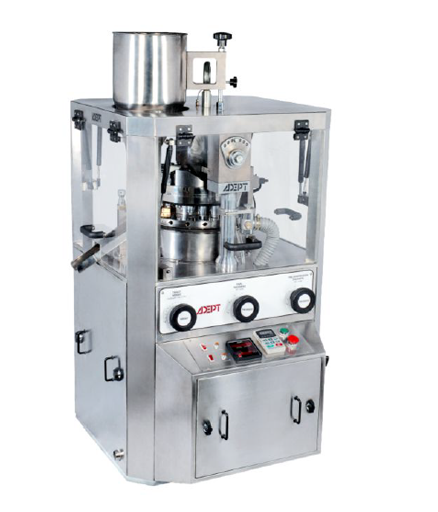

Adept ASR – 20-32 Station Tablet Press

SALIENT FEATURES

• Centrally Driven Without Gear on Turret
• Three Paddle Force Feeding System
• Food Grade Multi-chamber Gravity Feeder -Minimum Weight Variation at High Speed
• Dwell Time Display in HMI

STANDARD FEATURES

• VFD Drive for Main Motor & FF Motor
• Turret is Electroless Nickle Plated
• Ball Spring Plugs for L.P. Locking
• Auto Lubrication System

OPTIONAL FEATURES

• Force Measurement System
• Auto Rejection & Sampling
• 21cfr part 11 Compliance
• AWC with Servo Motorized Control
• Turret with SS 316 Die Plate for Corrosive Products

Model	Stations	Round Tablet (Max Dia.)	Caplet (Max Length)	Max Pressure	Punch	Die	Tablet Output (Per Hour)
							50 rpm
ASR D-D-20	20	25	25	10	D	D	60,000
ASR D-B-26	26	22	22	10	D	B	78,000
ASR B-B-26	26	18.5	19	6.5	B	B	78,000
ASR B-BB-32	32	13	16	6.5	B	BB	96,000
ASR 10D+10B	10+10	25	25	10	D+B	D+B	30,000
