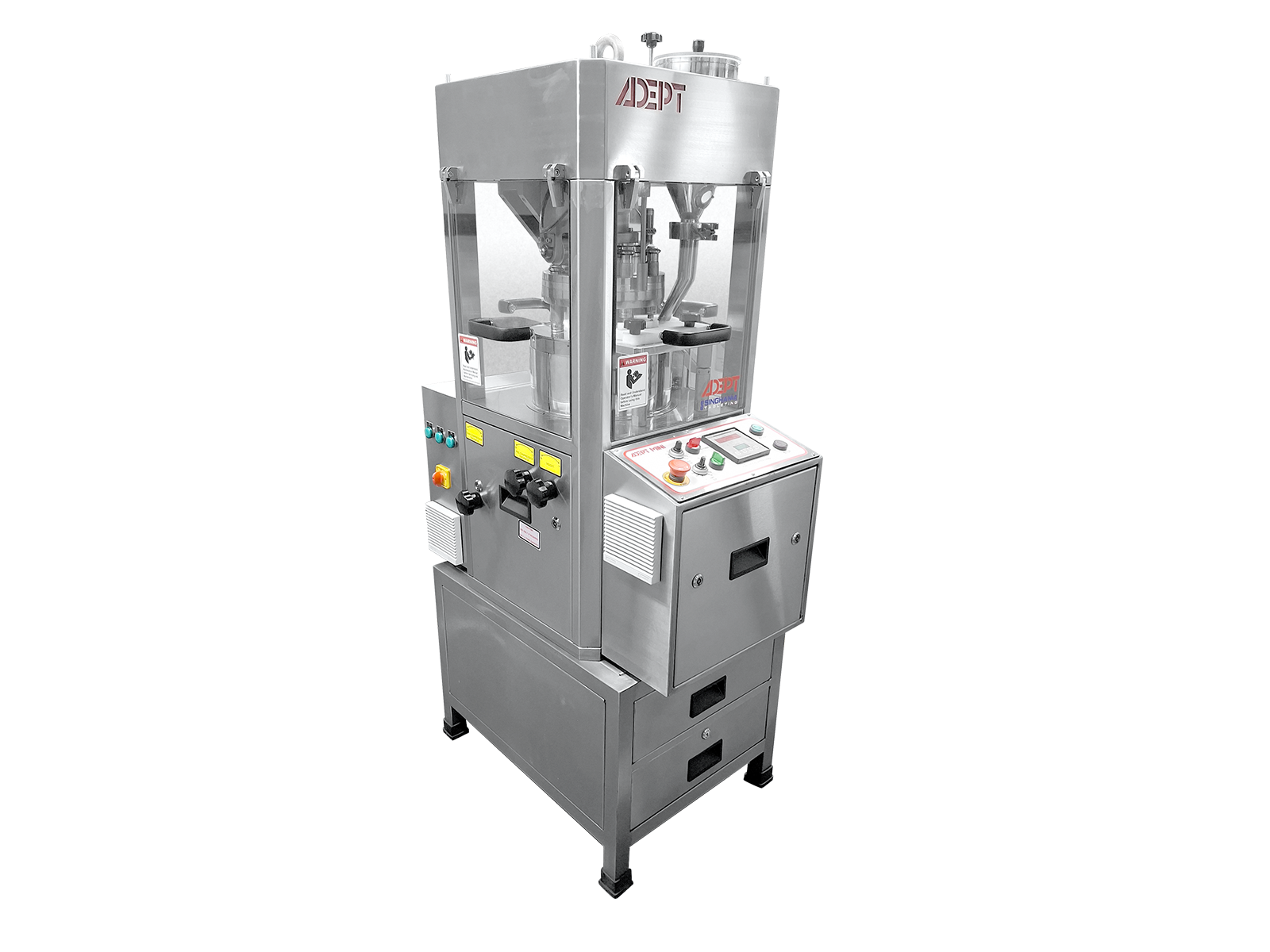

- Centrally Driven Without Gear on Turret
- 20kN Pre compression & 65kN Main Compression
- 3HP motor, 5HP VFD, Heavy Duty Gear Box
- Fill depth – 20mm
- Electroless Nickle Plated Turret
- Upper & Lower Rollers on Bearing
- Upper Punch penetration Main Comp- 3.5 to 6.5 mm
- Upper Guards with Safety Lock
- Force Measurement System
- Tablet Rejection & Sampling
- Dwell Time Display
- SS Table with Drawer to increase machine operating Height.
|
Model |
Stations | Round Tablet (Max Dia.) |
Caplet (Max Length) |
Max Pressure | Punch | Die |
Tablet Output |
|
30 rpm |
|||||||
|
ATR D-D-8 |
8 | 25 | 25 | 6.5 | D | D |
14,400 |
| ATR B-B-10 | 10 | 19 | 19 | 6.5 | B | B |
18,000 |
| ATR 4D+4B | 4D + 4B | 25 | 25 | 6.5 | D + B | D + B |
7,200 |
